IEC/NEMA IP54 VHS vertical hollow shaft Motor

FOB Reference Price:Get Latest Price
$240.00 - $22,000.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
CHINA ELECTRIC
Model Number:
VHS
Output Power:
7.5 HP to 600 HP
Type:
Asynchronous Motor
Frequency:
60 Hz
Phase:
Three-phase
Certification:
CCC, ce, UL
Protect Feature:
drip-proof, totally enclosed
AC Voltage:
200, 230, 460, 575 v
Efficiency:
IE 1
Item:
IEC/NEMA IP54 VHS vertical hollow shaft Motor
Structure:
Induction Motor
Protection rating:
WP-1, IP23, IP54, IP23
Speed:
Constant Speed
Shaft:
Vertical Hollow Shaft
Pole:
4
Standard:
IEC, NEMA
Cooling method:
IC410, IC411, IC611
Application:
vertical deep well turbine pump
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month NEMA standard VHS Vertical Hollow Shaft Induction Motor
Packaging & Delivery
Packaging Details
One piece in one plywood cases
Port
Shanghai
Lead Time :
15 to 60 days
IEC/NEMA standard VHS Vertical Hollow Shaft Induction Motor
Product Description



Featurea and application:

NEMA standard VHS Vertical Hollow Shaft Induction Motor is three phase squirrel cage induction motor, especially for driving vertical deep well turbine pump.


This kind of motor is of high efficiency, high starting torque, quiet-running, low vibration, low temperature rise, can sustain heavy axial thrust load, have compact and reliable structure with easy maintenance etc.

After being fitted with vertical pumps, the motors are widely used in pumping underground water in mines, city, farm and factories etc. The degree of protection is weather-protected type1 (drip-proof) and IP54, IP55.

Main technical parameters
1. For IEC standard
TypeRated OutputRated CurrentRated VoltageRated FrequencySynchronous SpeedEfficiencyPower Factor
hp/kwAVHzr/min%
VHS132-1-27.5/5.511/10.838050/603000/360083.80.88
VHS132-2-210/7.514.4/14.538050/603000/360084.80.88
VHS160-1-24232322.5/2238050/603000/360084.50.88
VHS160-2-220/153038050/603000/360085.50.88
VHS160-1-44232323/22.538050/601500/180086.50.85
VHS160-2-420/153038050/601500/180087.50.86
VHS180-1-225/18.53638050/603000/3600870.88
VHS180-2-230/2243/42.538050/603000/360087.50.88
VHS180-1-425/18.53738050/601500/1800880.86
VHS180-2-430/2243.5/4338050/601500/180088.50.86
VHS200-1-240/305838050/603000/3600880.88
VHS200-2-250/3770.5/7038050/603000/360088.50.88
VHS200-1-440/3058/58.538050/601500/180089.50.87
VHS200-2-450/3772/7138050/601500/1800900.87
VHS200-3-460/4585/85.538050/601500/180090.50.87
VHS250-1-475/55105.5/103.538050/601500/1800910.88
VHS250-2-4100/75139.5/14038050/601500/180091.50.88
VHS250-3-4125/90173/167.538050/601500/180091.50.88
VHS280-1-4150/110205.5/20238050/601500/1800920.88
VHS280-2-4175/132238/24138050/601500/180092.50.88
VHS280-3-4200/150275/27638050/601500/180092.50.88
VHS280-4-4250/185348/34538050/601500/180092.50.88
VHS280-5-4270/200374/37138050/601500/1800930.88
VHS280-6-4300/220415/40838050/601500/1800930.88
VHS315-1-4250/185348/34538050/601500/1800930.88
VHS315-2-4270/200374/37138050/601500/1800930.88
VHS315-3-4300/220415/40838050/601500/1800930.88
VHS315-4-4350/260484.5/48038050/601500/180093.50.88
VHS355-1-4400/30055438050/601500/180093.50.88
VHS355-2-4450/335623/61838050/601500/180093.50.88
VHS355-3-4500/37568938050/601500/1800940.88
VHS355-4-4600/45082638050/601500/1800940.88

 2. For NEMA standard

200, 230, 460, 575 V /60 Hz,3 PHASE
TypeRated outputRated speed

Current at

460 V

Locked rotor torqueRated eff.Power factorNema code
letter
TorqueDownthrust
Full loadLocked rotorLocked rotorBreak downStandardExtra
of full load
HPr/minAALb-Ft%% %%lblb
VHS215TP-4-010S10176513.1783085.283G17020025002500
VHS254TP-4-015S15176518.611644.78983.5G17020032003200
VHS256TP-4-020S20177224.414559.78985G17020032003200
VHS284TP-4-025S25177230.2183749085G16020032003200
VHS286TP-4-030S30177235.821789.29086G16020032003200
VHS324TP-4-040S40177246.427611991.587G16020055008800
VHS326TP-4-050S5017725836314991.587G16020055008800
VHS364TP-4-060S60177570.243317792.587G15020056008960
VHS365TP-4-075S75177586.253022292.587G15020056008960
VHS404TP-4-100S1001775116.272429793.187G150200670010750
VHS405TP-4-125S1251775140.689237093.388G150200670010750
VHS444TP-4-150S1501778168.4107444393.588G140200800012800
VHS444TP-4-175S1751778196.5129552293.588G140200800012800
VHS445TP-4-200S2001778228144259093.888G140200800012800
VHS445TP-4-250S2501778279.218267389488G140175800012800
VHS447TP-4-300S3001778329.5218788294.589G140175800012800
VHS5006P-4-300S3001780329.5218788294.589G120175875014000
VHS5006P-4-350S3501780383.22496102994.889G120175875014000
VHS5008P-4-400S4001780435.72858117695.389G120175875014000
VHS5008P-4-450S4501780489.63278132395.489G100175875014000
VHS5008P-4-500S5001780543.43687147095.589G100175875014000





Drawing

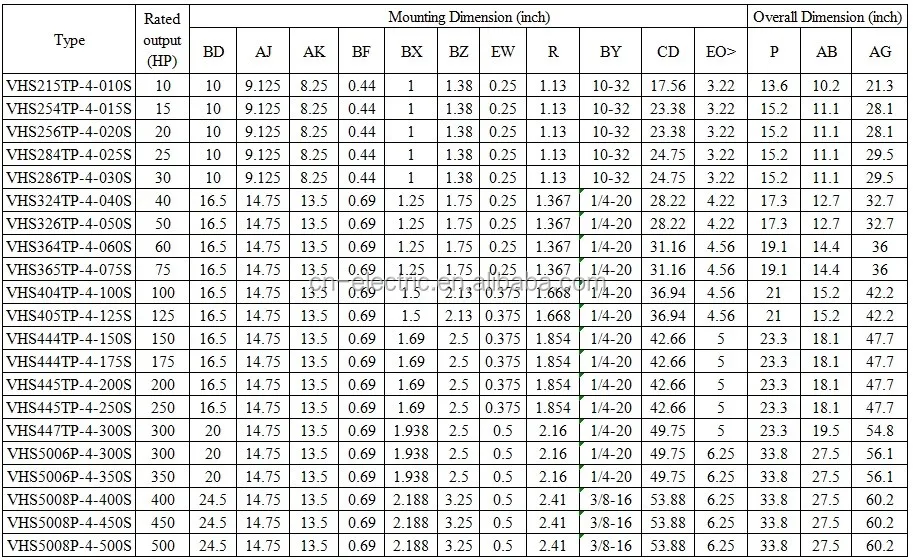

Mounting Dimension
